SKU: 246-1000

CBN Pins - "BL" Series

$15.37 CAD
Style

In diameters from 0.02" to 0.25", these CBN Pins can access those really hard-to-reach spots. When heat distortion is an important factor, CBN is the wise choice because it runs cooler than diamond.

Our CBN pins are recommended for use on high carbon, high chrome, high speed steels, such as: M2, M3, M7 and T15; die steels, such as: D2, D3, HB, A & O; alloy steels (harder than 50Rc); nickel and cobalt base super alloys; titanium and stainless steels. The cutting edges will last longer, resist breakdown better, produce more ground parts per hour, and improve the quality of the finished product. Overall costs are reduced.

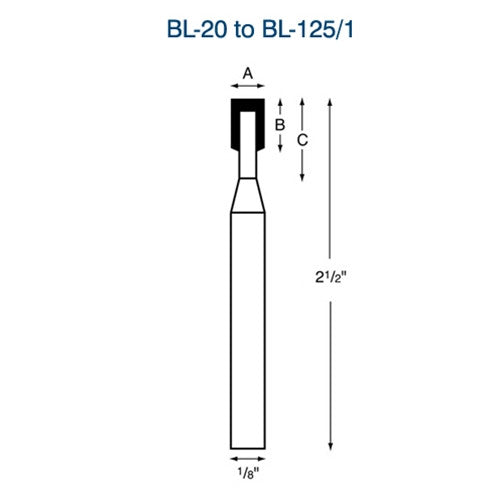

All CBN "BL" Series Pins are 2-1/2" overall length on 1/8" shanks.

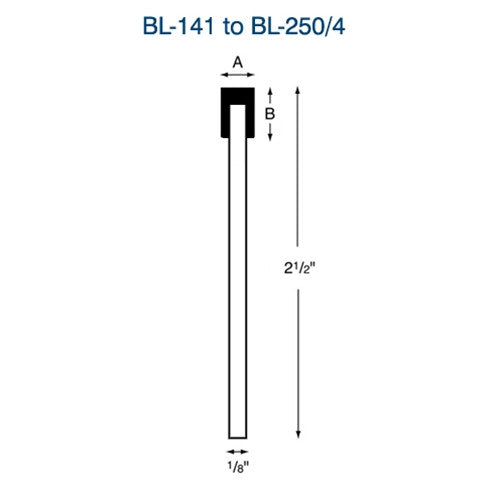

Style#
Diameter
(A)
Cutting
Length (B)
Head
Length (C)
Grit
BL-20
0.02"
1/16"
1/8"
140/170
BL-25
0.025"
3/32"
1/4"
140/170
BL-30
0.03"
3/32"
1/4"
140/170
BL-35
0.035"
3/32"
1/4"
140/170
BL-40
0.04"
1/8"
3/8"
80/100
BL-45
0.045"
1/8"
3/8"
80/100
BL-50
0.05"
1/8"
3/8"
80/100
BL-50/1
0.05"
1/8"
1"
80/100
BL-55
0.055"
1/8"
3/8"
80/100
BL-60
0.06"
1/8"
3/8"
80/100

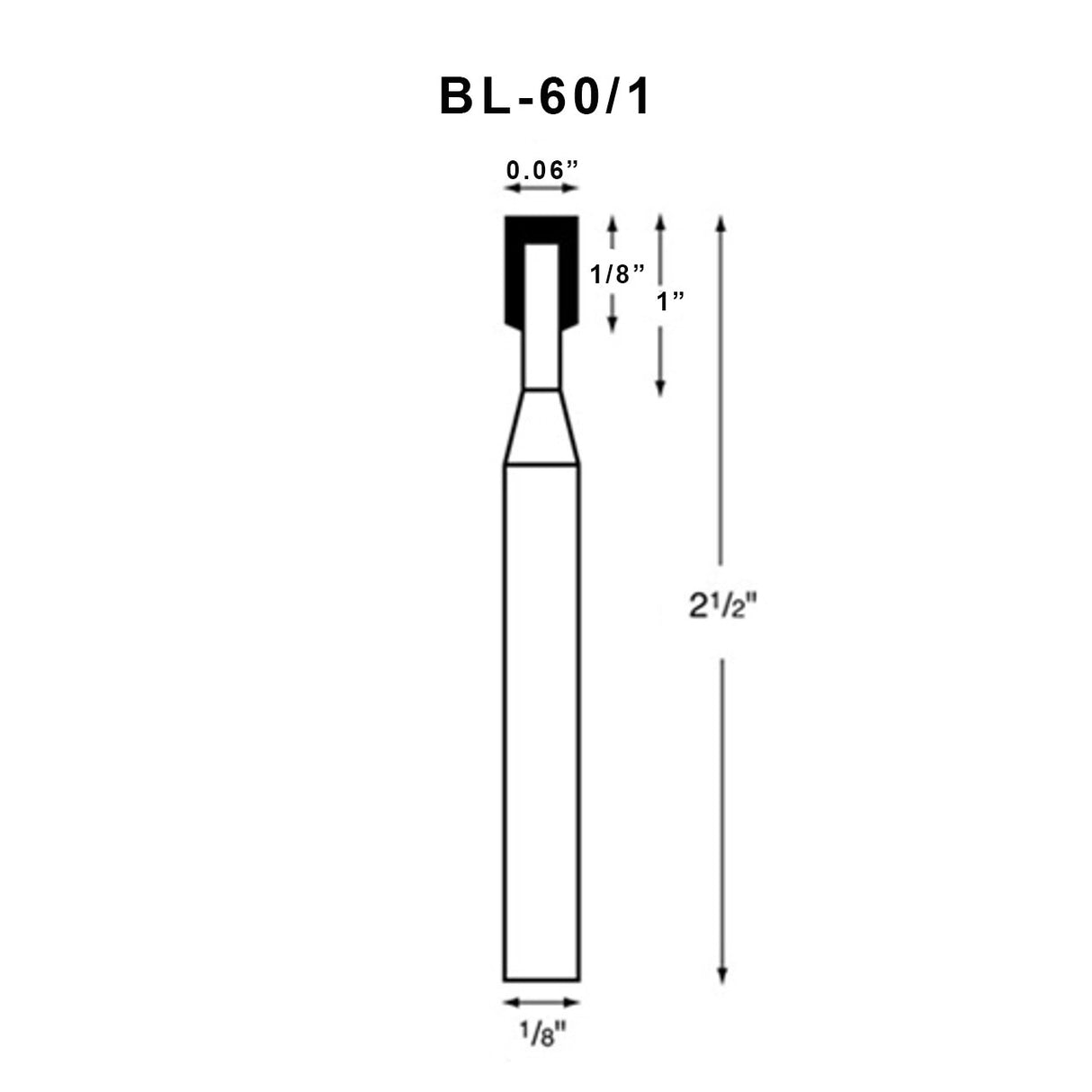

BL-60/1
0.06"
1/8"
1"
80/100

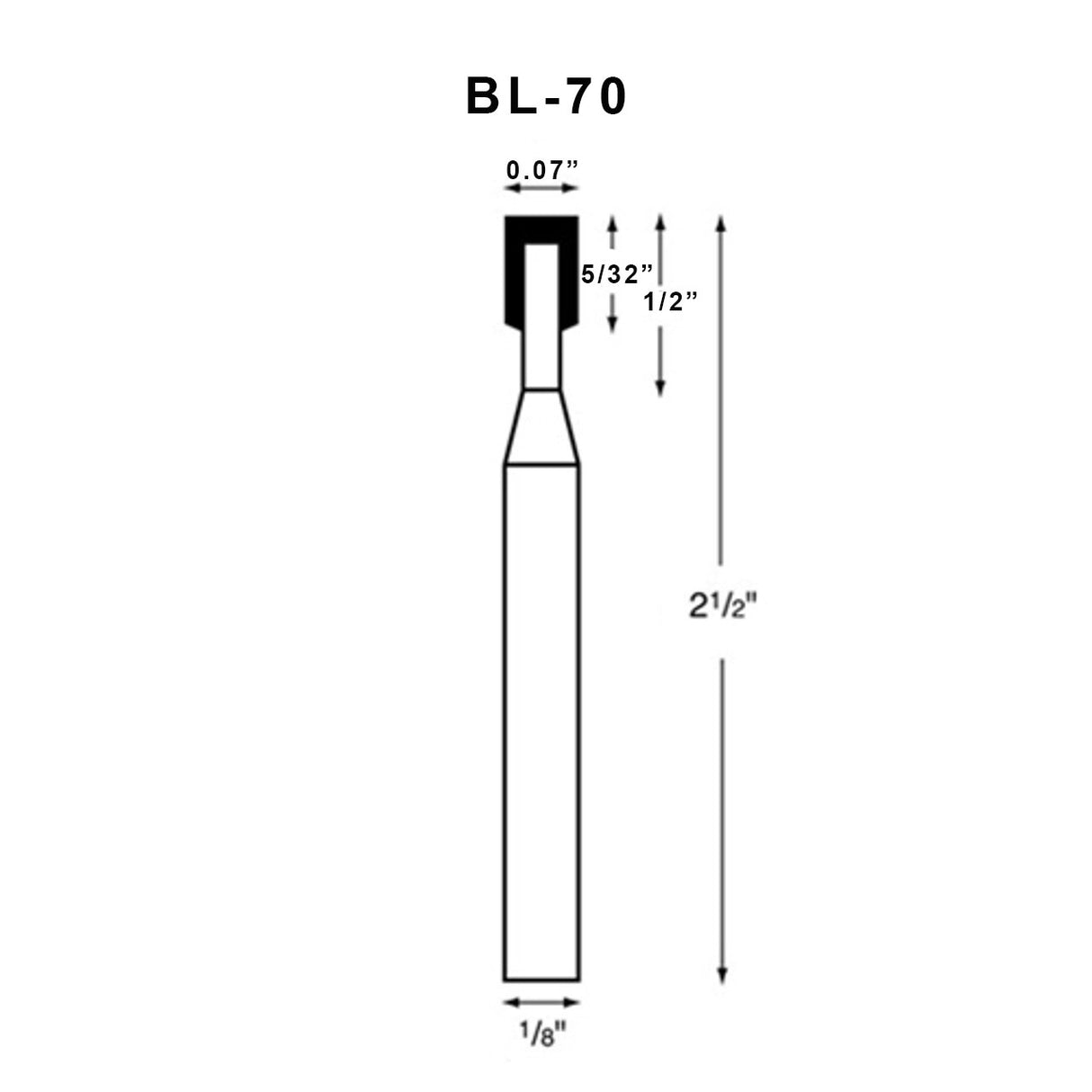

BL-70
0.07"
5/32"
1/2"
80/100

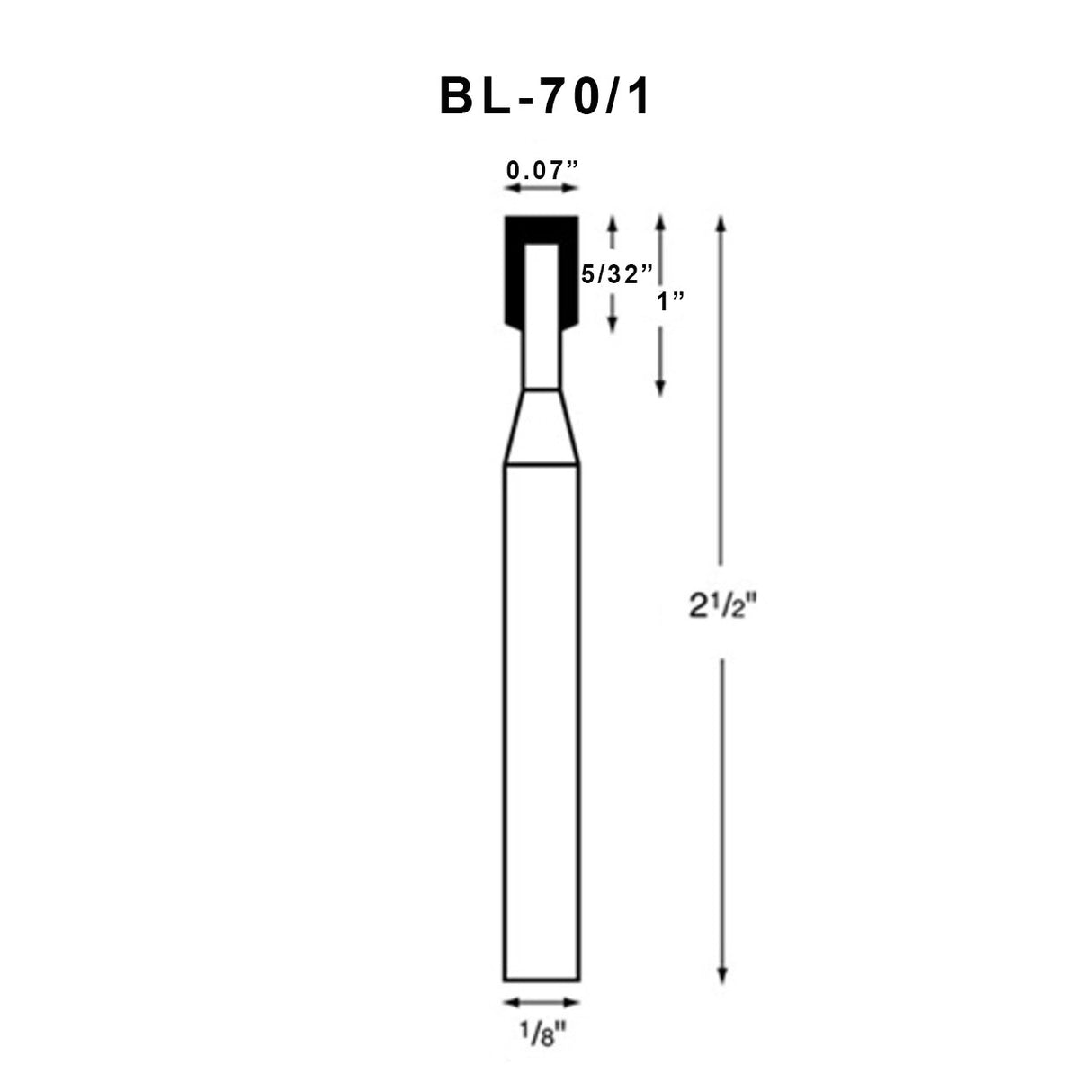

BL-70/1
0.07"
5/32"
1"
80/100
BL-80
0.08"
5/32"
1/2"
80/100
BL-90
0.09"
5/32"
1/2"
80/100
BL-90/1
0.09"
5/32"
1"
80/100

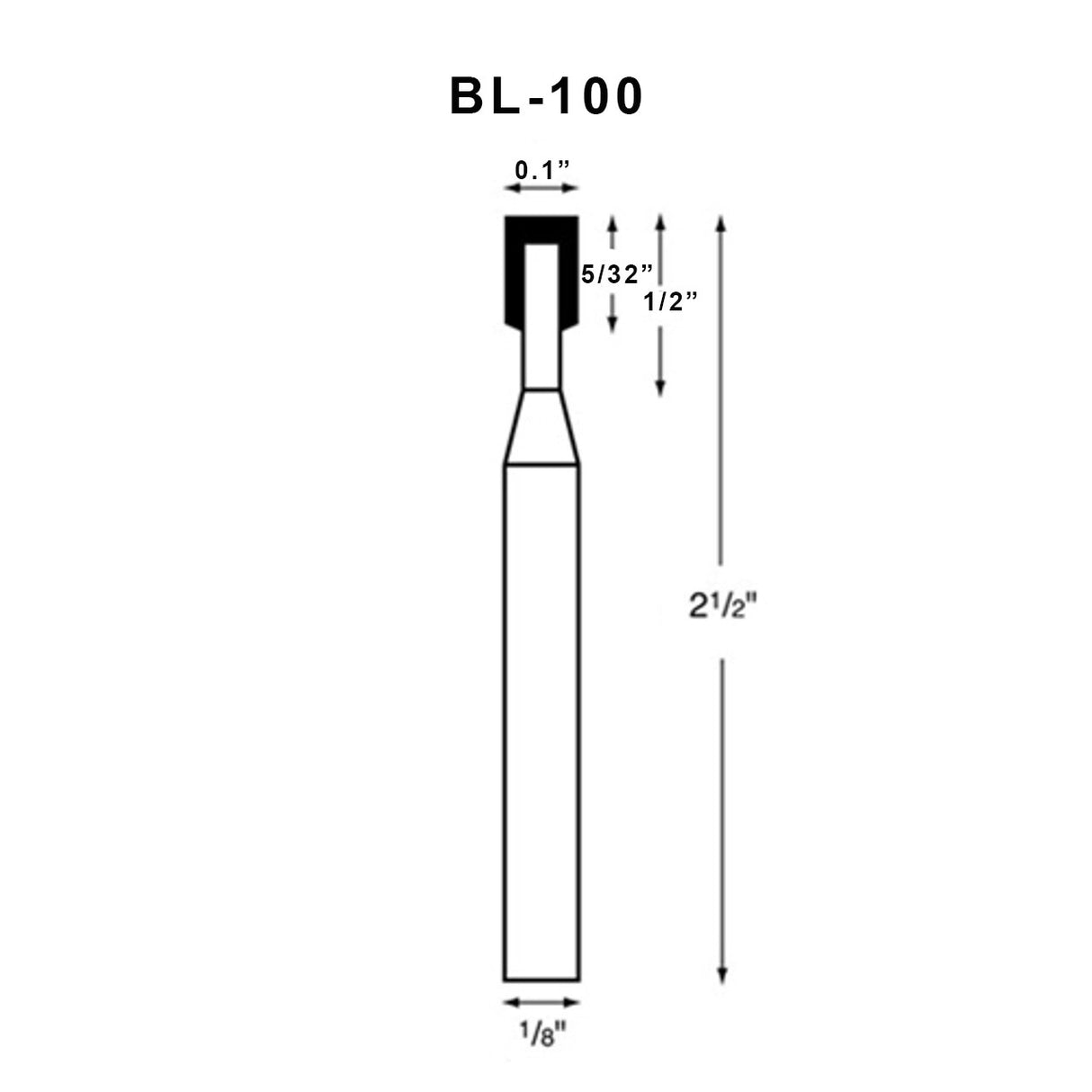

BL-100
0.1"
5/32"
1/2"
80/100
BL-100/1
0.1"
5/32"
1"
80/100
BL-110
0.11"
5/32"
1/2"
80/100
BL-110/1
0.11"
5/32"
1"
80/100
BL-125
0.125"
5/32"
1/2"
80/100

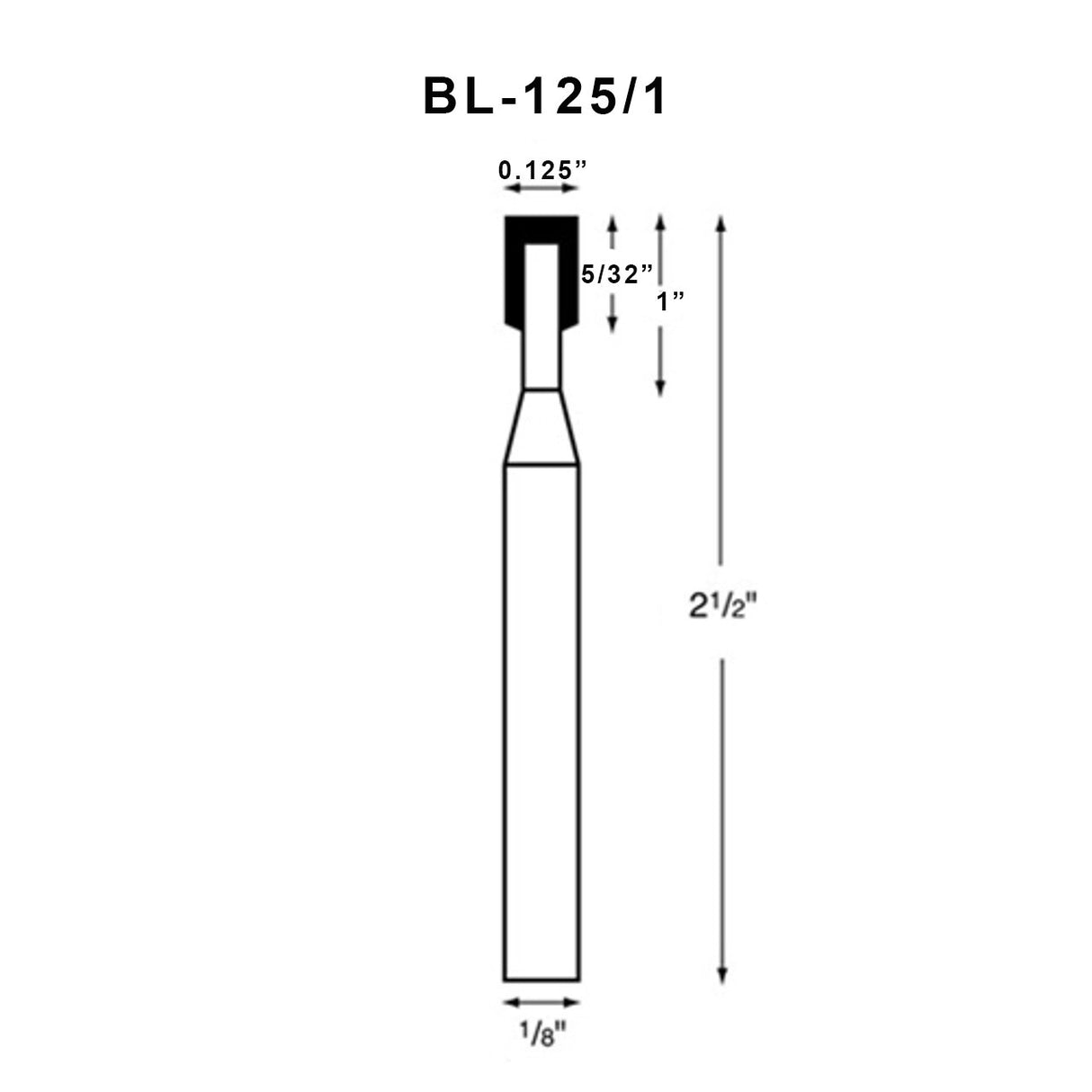

BL-125/1
0.125"
5/32"
1"
80/100

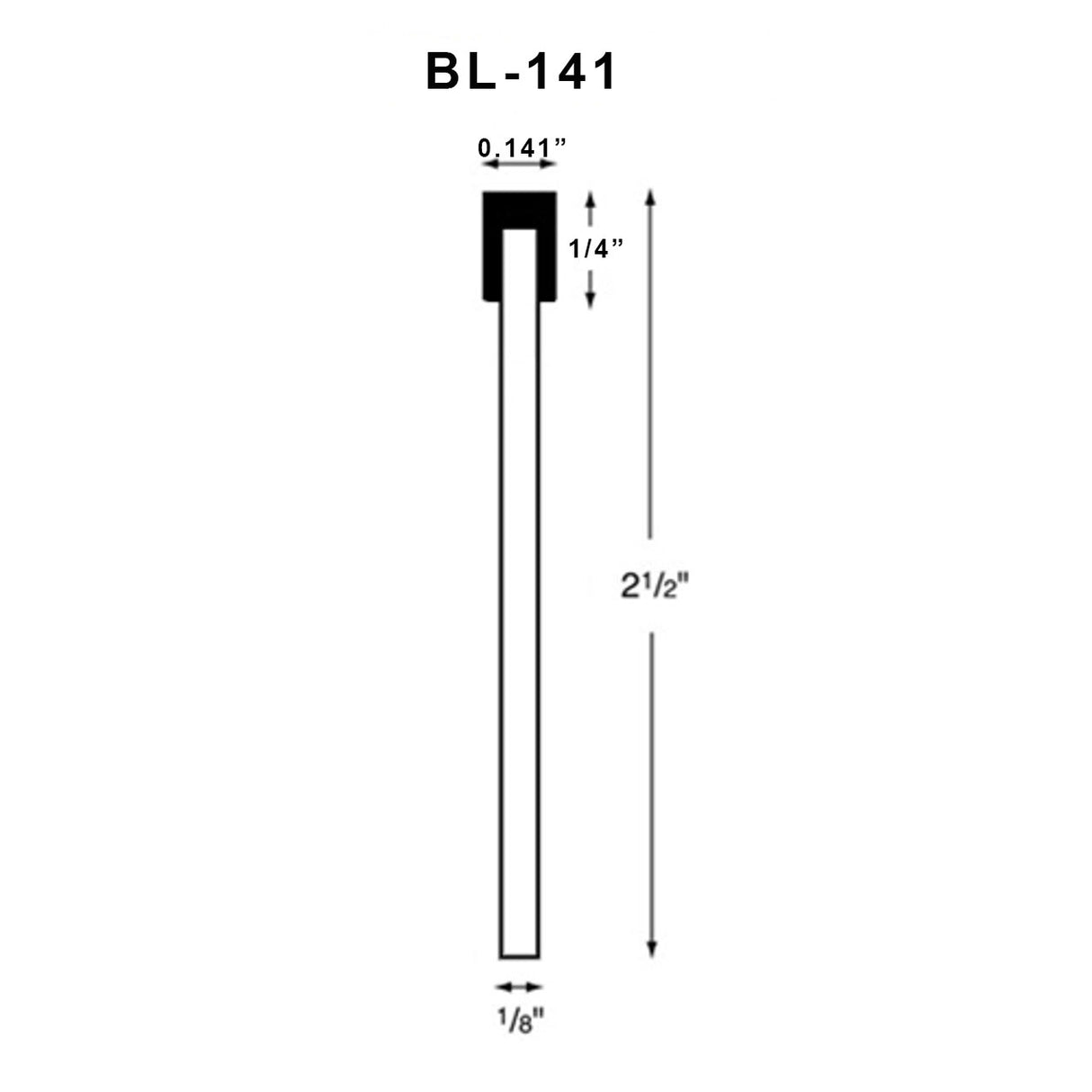

BL-141
0.141"
1/4"
—
80/100
BL-156
0.156"
1/4"
—
80/100
BL-188
0.188"
1/4"
—
80/100
BL-218
0.218"
1/4"
—
80/100
BL-250/2
0.25"
1/8"
—
80/100
BL-250/4
0.25"
1/4"
—
80/100
Style#
Diameter
(A)
Cutting
Length (B)
Head
Length (C)
Grit
