Aquaflame Service Kit
From
$545.00 CAD
Unit price
/
Unavailable

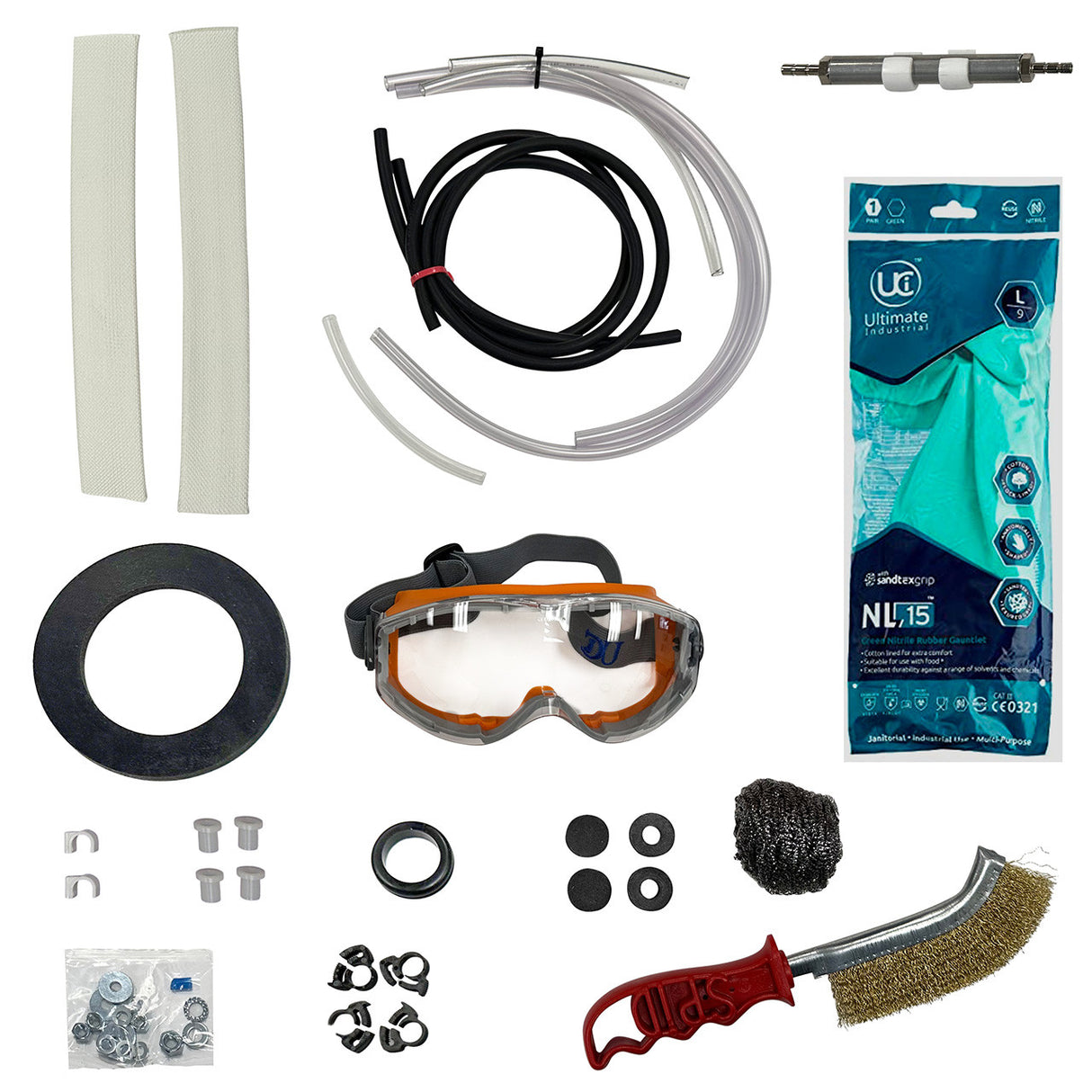

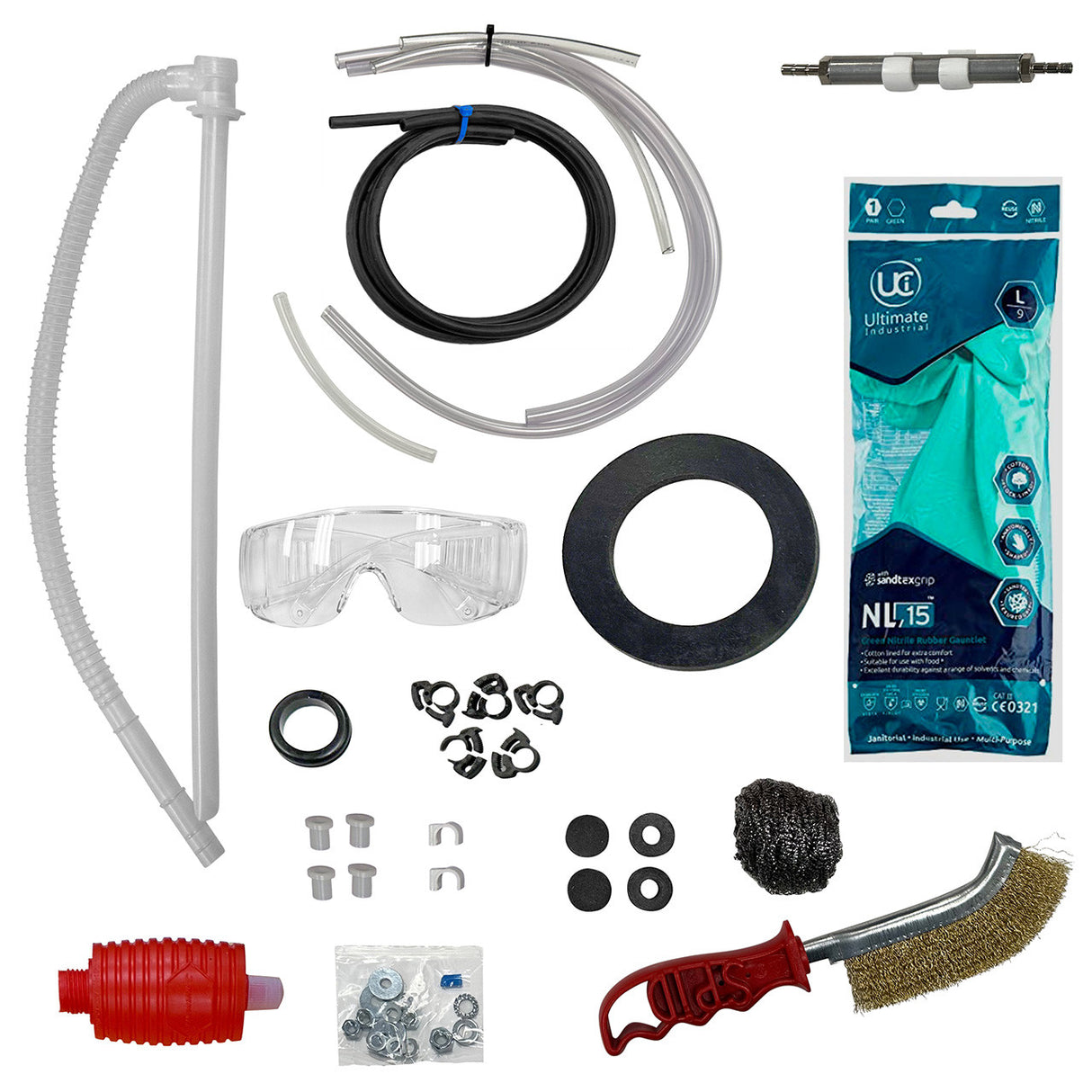

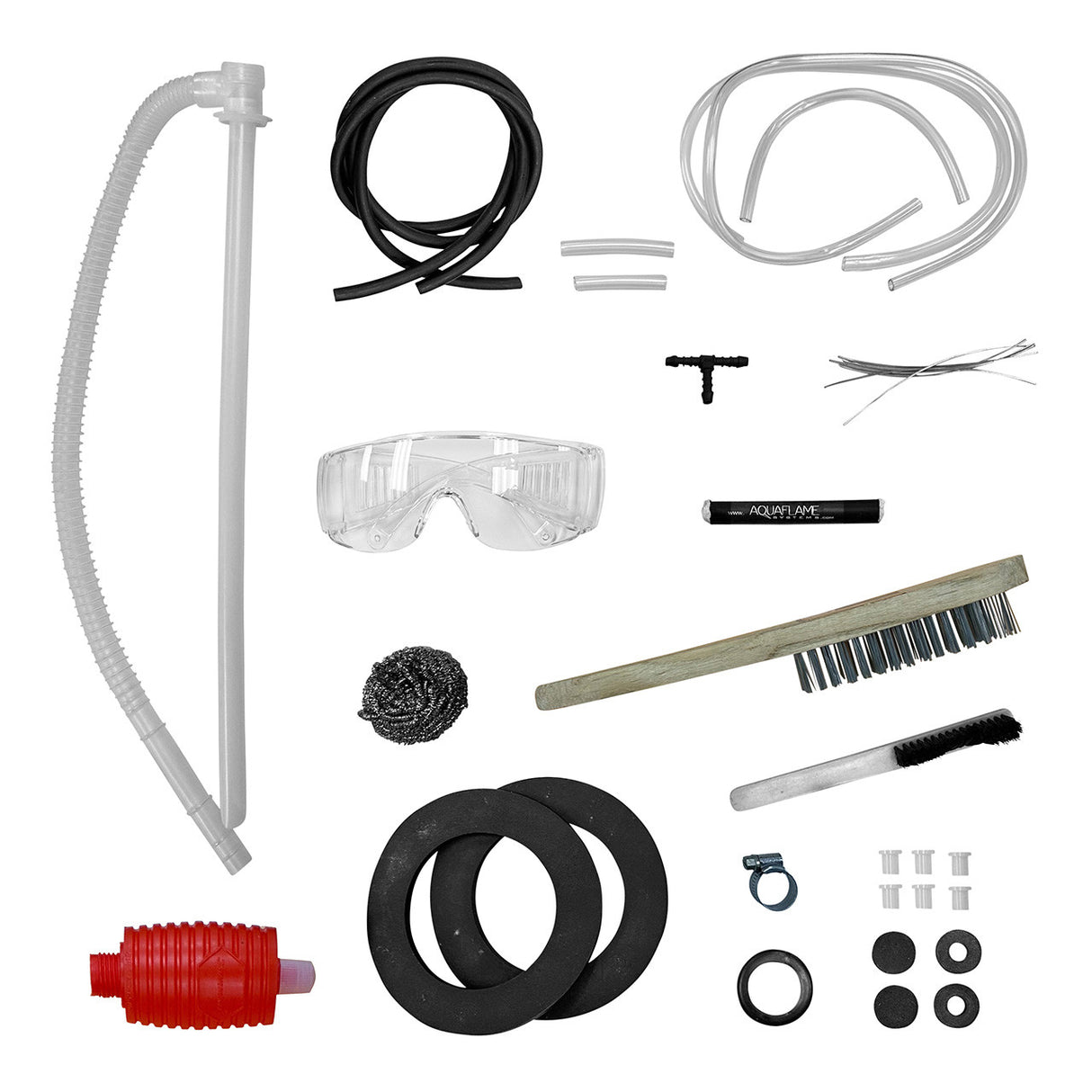

Aquaflame Systems need to be serviced every 4000 working hours (approximately 12 months). The Service Kits for each model contain all the necessary components needed to self-service your unit. Instructions are supplied and need to be read before starting the service work. It is mandatory to use the gloves that are provided and protective eyewear at all times. The detailed instructions walk you through disassembling the unit where you will scrub, clean and rinse several internal areas. Several parts will be removed and replaced with the new ones that are supplied in the Service Kit. The estimated time for this procedure is 2 hours. See the chart below for all items included in the comprehensive kits.
| Description |
Model 500 |
Model 800 |
Model 1200 |
| Set of Instructions | 1 | 1 | 1 |
| Siphon Pump | 1 | 1 | 1 |
| Pair of Safety Glasses | 1 | 1 | 1 |
| Wire Brush | 1 | 1 | 1 |
| Wire Wool Scouring Pad | 1 | 1 | 1 |
| Sight Tube Clips | 2 | 2 | 2 |
| PVC 6mm Clear Sight Tube | 620mm | 590mm | 300mm |
| PVC 6mm Clear Cell to Gas Outlet | 280mm | 420mm | - |
| PVC 5mm Clear Pressure Switch to Flash Back Tube | 132mm | 140mm | 220mm |
| PVC 5mm Clear Flash Back to Cell Top Tube | 190mm | 240mm | 570mm |
| PVC 6mm Clear Tube T-Piece to Gas Outlet | - | - | 460mm |
| PVC 6mm Clear Tube T-Piece to Cell Top | - | - | 65mm (2) |
| Cell Connection Tube 110mm | - | - | 1 |
| Cell Tube Connection Clips | - | - | 2 |
| T-Piece | - | - | 1 |
| Wire Ties | 4 | 4 | 6 |
| Cell Gasket | 1 | 1 | 2 |
| Cell Insulators | 4 | 4 | 8 |
| Electrical Braid 260mm | - | 2 | 2 |
| Pressure Switch Blue Tube (10mm in Length) | 1 | 1 | 1 |
| Sight Tube for Booster (120mm in Length) | 1 | 1 | 1 |
| Flash Back Replacement Body | 1 | 1 | 1 |
| Polo Washer | 2 | 2 | 2 |
| Plain Washer | 2 | 2 | 2 |
| Case insulator | 1 | 1 | 1 |
| Neoprene Tubing | 150mm | 150mm | 150mm |
| M8 Washer | 1 | 1 | 3 |
| M8 Nut | 1 | 1 | 3 |
| M6 Washer Large | 4 | 4 | 8 |
| M6 Washer Small | 4 | 4 | 8 |
| M6 Nut | 8 | 8 | 16 |
| Fuse 8 Amp 110 Volts | 1 | - | - |
| Fuse 15 Amp 110 Volts | - | 1 | 1 |
| Corrosive Label | 1 | 1 | 1 |
