SKU: 510-2150

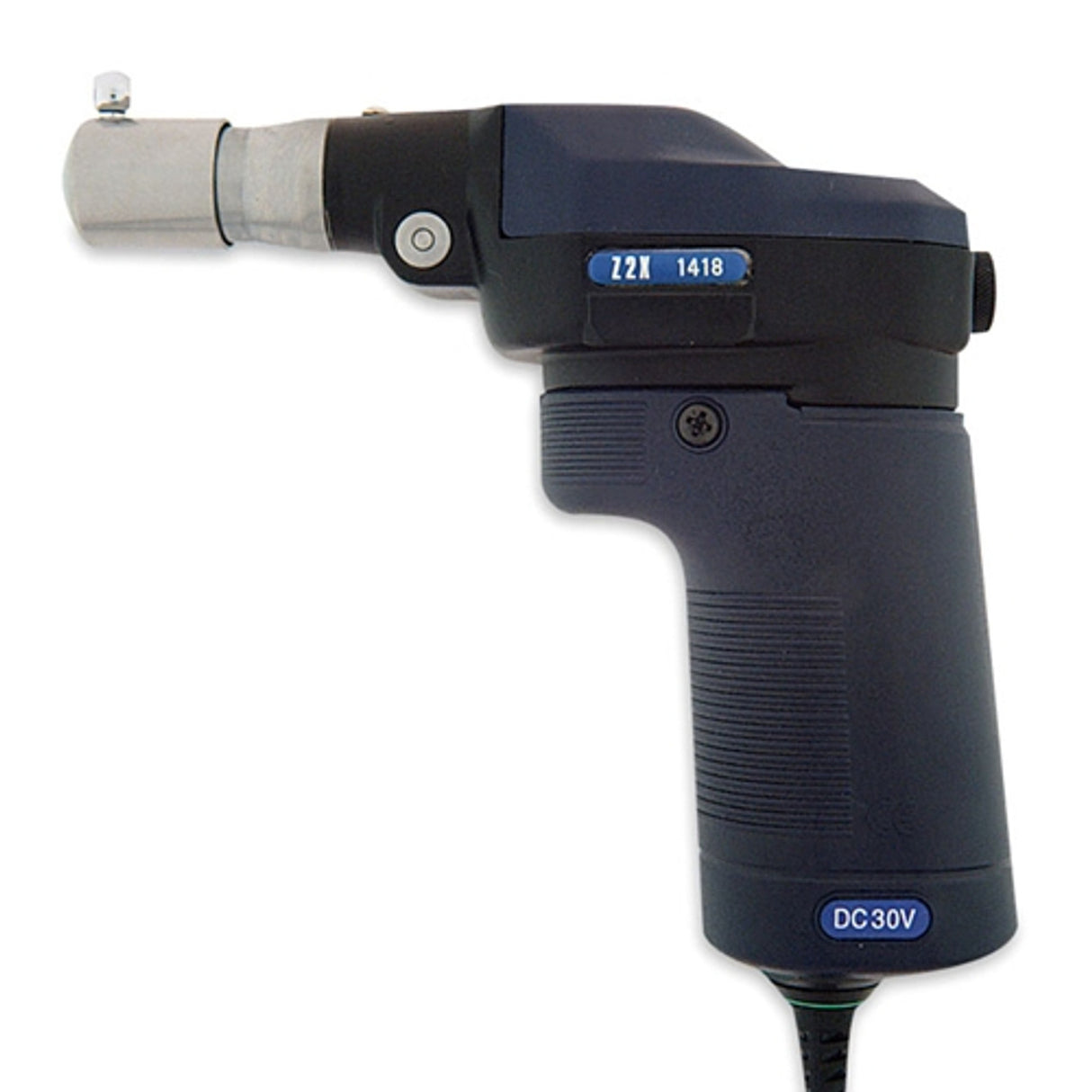

Power Hand® Reciprocating Profilers

$1,746.60 CAD

Style

 More payment options

These light (24 oz.) reciprocating handpieces come complete with powerful 30V DC air-cooled motors and sealed bearings. Use for polishing flat surfaces, deburring, filing, stoning, scraping, lapping and draw-stoning deep cavities. They operate with minimal vibrations to reduce fatigue and have flexible power cords for easy reach. Special V-shaped chucking system firmly secures a wide variety of abrasives and other tools such as steel files. Reciprocating stroke lengths are adjustable. Use with Power Hand® 3 controller or PH2X controller (no longer available), as well as ULTRAMAX DF, ULTRAMAX MF and the ULTRAMAX MF Touch.  Backed by a limited warranty that covers wear parts for 90 day and overall balance of parts for 6 months. Made in Japan.

Both Z-2X and Z-6X provide standard back-and-forth reciprocating action. They hold 2.0 to 6.35mm (1/4") diameter tools. Secured tools can float freely and be fixed at any position through 360°.
Z-2X has a 0-2.0mm length of stroke with a variable strokes per second rate up to 117.

Z-6X has a 0-6.0mm length of stroke with a variable strokes per second rate up to 70.

Both handpieces should be used with our Tool Holders.

Power Hand® Reciprocating Profiler Comparison
Model: Z-2X Z-6X SZX
Strokes per Second: Max 117 Max 70 Max 133
Length of Stroke: 0 - 2.0mm 0 - 6.0mm 0 - 1.6mm2
Max. Stoppage Torque
with Power Hand® 3 Controller:
0.048/0.065 0.048/0.065 -
Max. Shaft Output (W/sec.)
with Power Hand® 3 Controller:
25.9 25.9 22.3
Net Weight: 24 oz. 24 oz. 10 oz.
Gesswein

Power Hand® Reciprocating Profilers

$1,746.60 CAD

These light (24 oz.) reciprocating handpieces come complete with powerful 30V DC air-cooled motors and sealed bearings. Use for polishing flat surfaces, deburring, filing, stoning, scraping, lapping and draw-stoning deep cavities. They operate with minimal vibrations to reduce fatigue and have flexible power cords for easy reach. Special V-shaped chucking system firmly secures a wide variety of abrasives and other tools such as steel files. Reciprocating stroke lengths are adjustable. Use with Power Hand® 3 controller or PH2X controller (no longer available), as well as ULTRAMAX DF, ULTRAMAX MF and the ULTRAMAX MF Touch.  Backed by a limited warranty that covers wear parts for 90 day and overall balance of parts for 6 months. Made in Japan.

Both Z-2X and Z-6X provide standard back-and-forth reciprocating action. They hold 2.0 to 6.35mm (1/4") diameter tools. Secured tools can float freely and be fixed at any position through 360°.
Z-2X has a 0-2.0mm length of stroke with a variable strokes per second rate up to 117.

Z-6X has a 0-6.0mm length of stroke with a variable strokes per second rate up to 70.

Both handpieces should be used with our Tool Holders.

Power Hand® Reciprocating Profiler Comparison
Model: Z-2X Z-6X SZX
Strokes per Second: Max 117 Max 70 Max 133
Length of Stroke: 0 - 2.0mm 0 - 6.0mm 0 - 1.6mm2
Max. Stoppage Torque
with Power Hand® 3 Controller:
0.048/0.065 0.048/0.065 -
Max. Shaft Output (W/sec.)
with Power Hand® 3 Controller:
25.9 25.9 22.3
Net Weight: 24 oz. 24 oz. 10 oz.
