Diamond Pins - "GL" Series
From
$15.37 CAD
Unit price
/
Unavailable
Nothing works as effectively as diamond for carbides and extremely hard steels and ceramics. Diamond cuts more efficiently at material removal rates beyond the capability of conventional abrasives such as Aluminum Oxide or Silicon Carbide.
All pins measure 2-1/2" long overall on 1/8" shanks. Available in Coarse (100/120 grit) or Fine (200/230 grit). In diameters from 0.02" to 0.25", these Diamond Pins can access those really hard-to-reach spots.
|

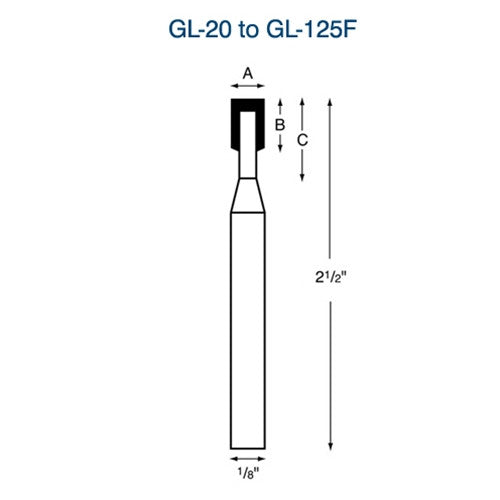

Style#
|
Diameter
(A) |
Cutting
Length (B) |
Head
Length (C) |
Grit
|
|---|---|---|---|---|
|
GL-20F
|
0.02"
|
1/16"
|
1/8"
|
200/230
|
|
GL-25C
|
0.025"
|
3/32"
|
1/4"
|
140/170
|
|
GL-25F
|
0.025"
|
3/32"
|
1/4"
|
200/230
|
|
GL-30C
|
0.03"
|
3/32"
|
1/4"
|
140/170
|
|
GL-30F
|
0.03"
|
3/32"
|
1/4"
|
200/230
|
|
GL-40C
|
0.04"
|
1/8"
|
3/8"
|
100/120
|
|
GL-40F
|
0.04"
|
1/8"
|
3/8"
|
200/230
|
|

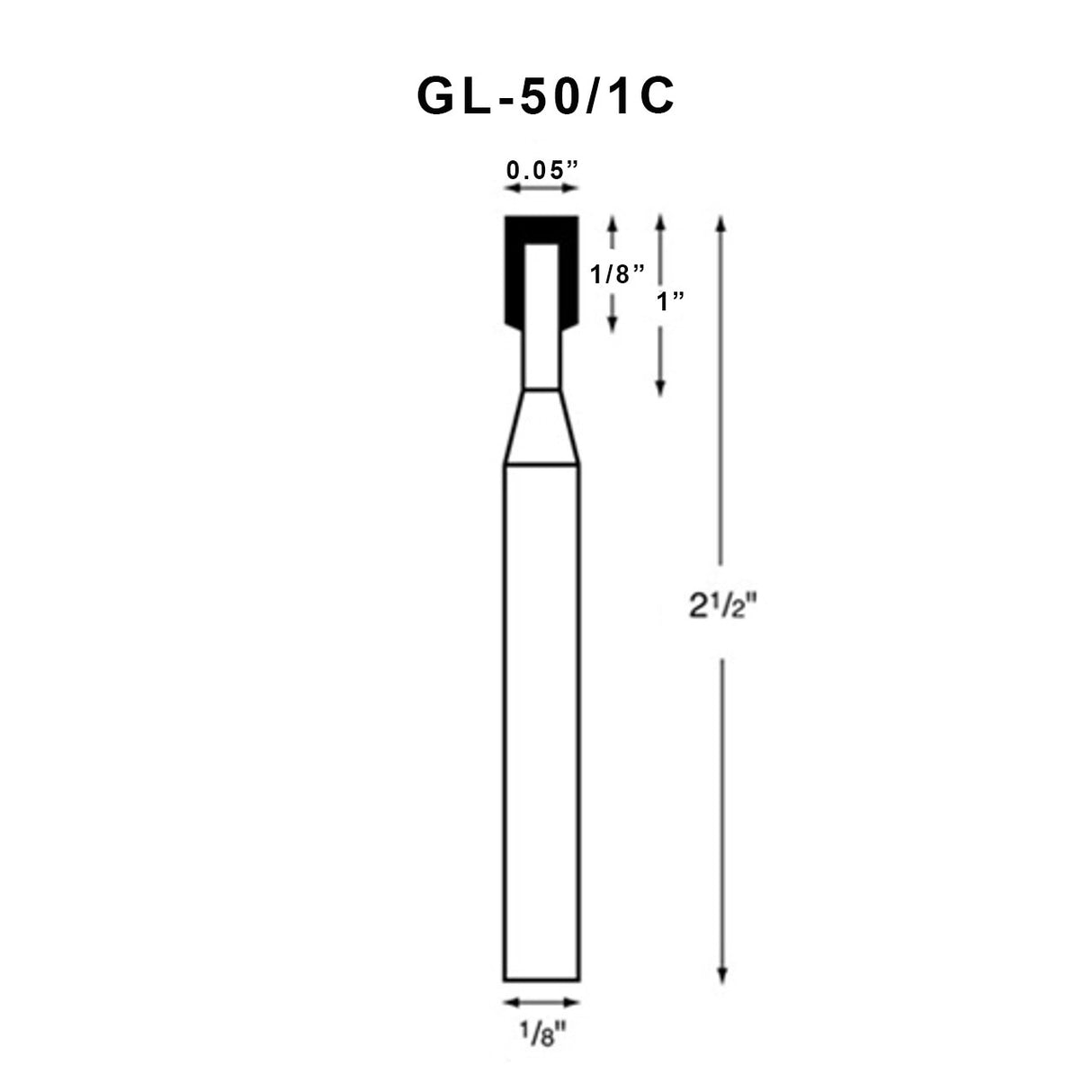

GL-50/1C
|
0.05"
|
1/8"
|
1"
|
100/120
|
|
GL-50C
|
0.05"
|
1/8"
|
3/8"
|
100/120
|
|
GL-50F
|
0.05"
|
1/8"
|
3/8"
|
200/230
|
|
GL-60C
|
0.06"
|
1/8"
|
3/8"
|
100/120
|
|
GL-60F
|
0.06"
|
1/8"
|
3/8"
|
200/230
|
|

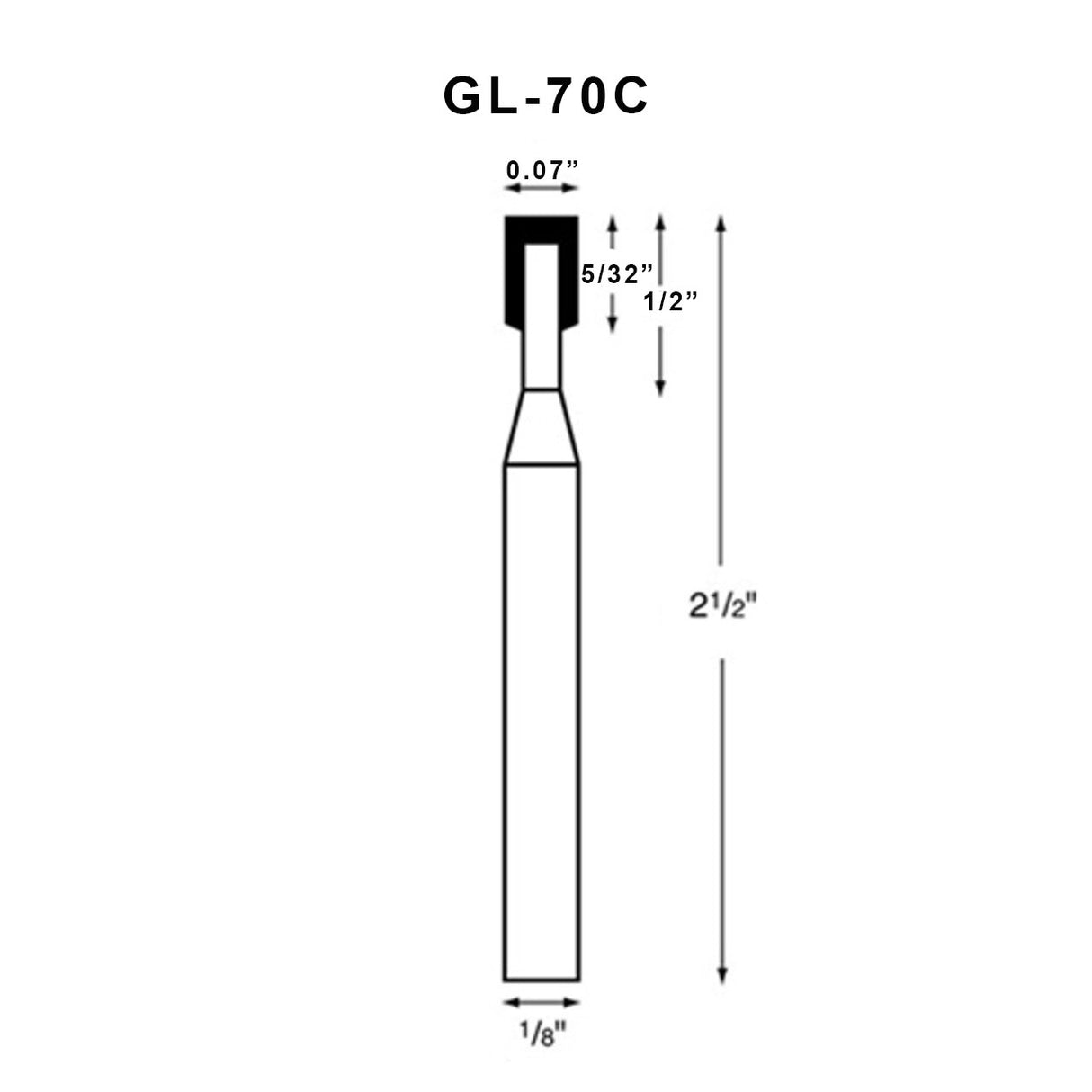

GL-70C
|
0.07"
|
5/32"
|
1/2"
|
100/120
|
|
GL-70F
|
0.07"
|
5/32"
|
1/2"
|
200/230
|
|
GL-70/1C
|
0.07"
|
5/32"
|
1"
|
100/120
|
|

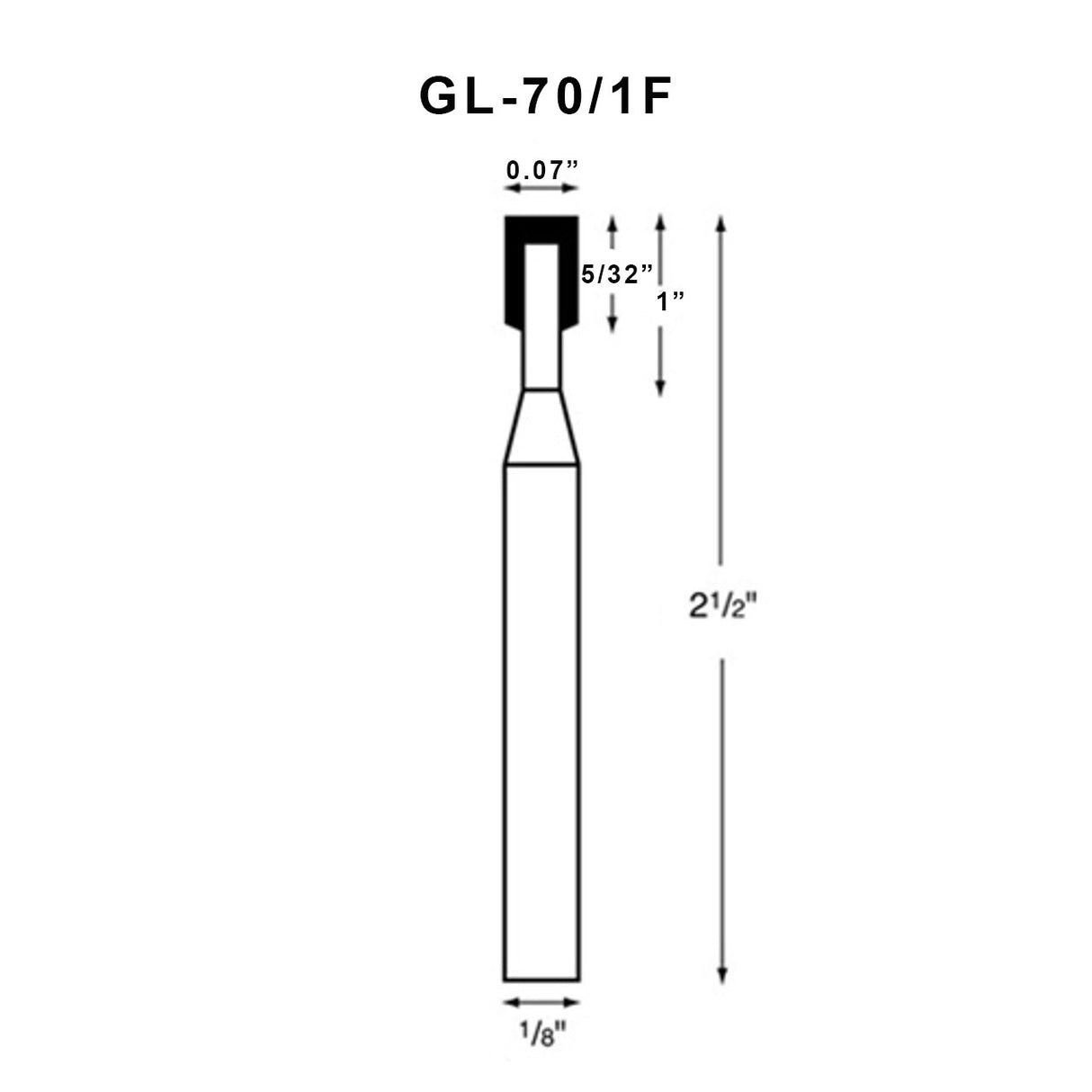

GL-70/1F
|
0.07"
|
5/32"
|
1"
|
200/230
|
|
GL-80C
|
0.08"
|
5/32"
|
1/2"
|
100/120
|
|
GL-80F
|
0.08"
|
5/32"
|
1/2"
|
200/230
|
|
GL-90C
|
0.09"
|
5/32"
|
1/2"
|
100/120
|
|
GL-90F
|
0.09"
|
5/32"
|
1/2"
|
200/230
|
|
GL-100C
|
0.1"
|
5/32"
|
1/2"
|
100/120
|
|

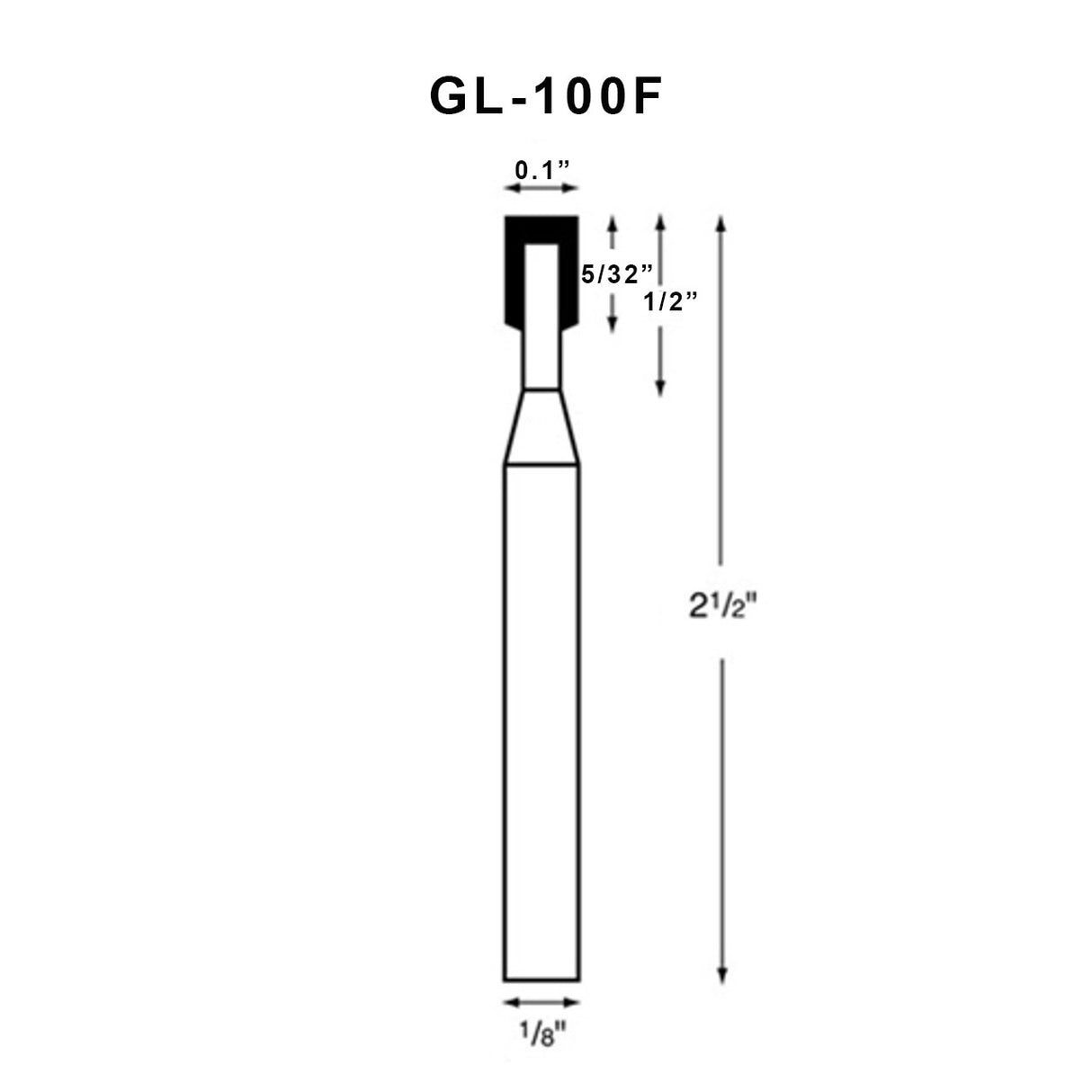

GL-100F
|
0.1"
|
5/32"
|
1/2"
|
200/230
|
|

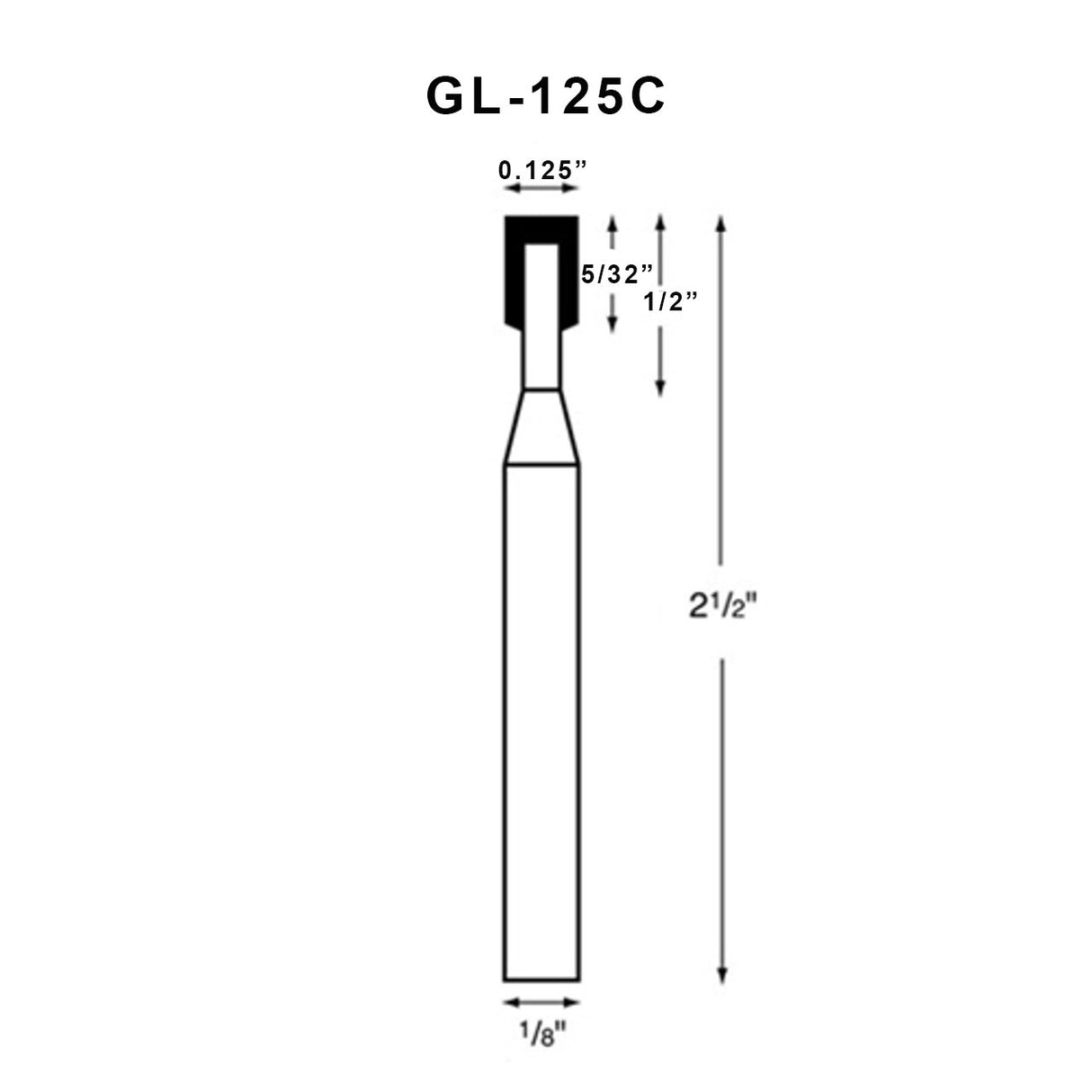

GL-125C
|
0.125"
|
5/32"
|
1/2"
|
100/120
|
|
GL-125F
|
0.125"
|
5/32"
|
1/2"
|
200/230
|
|

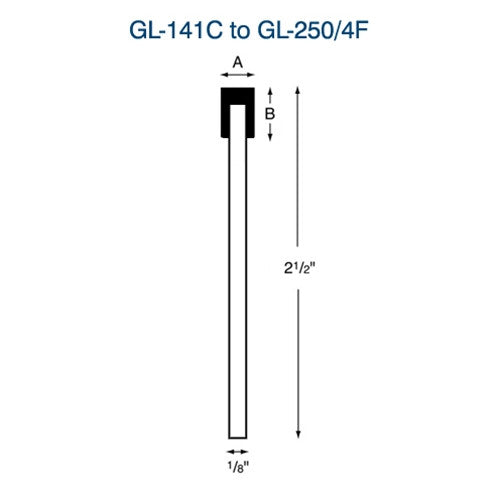

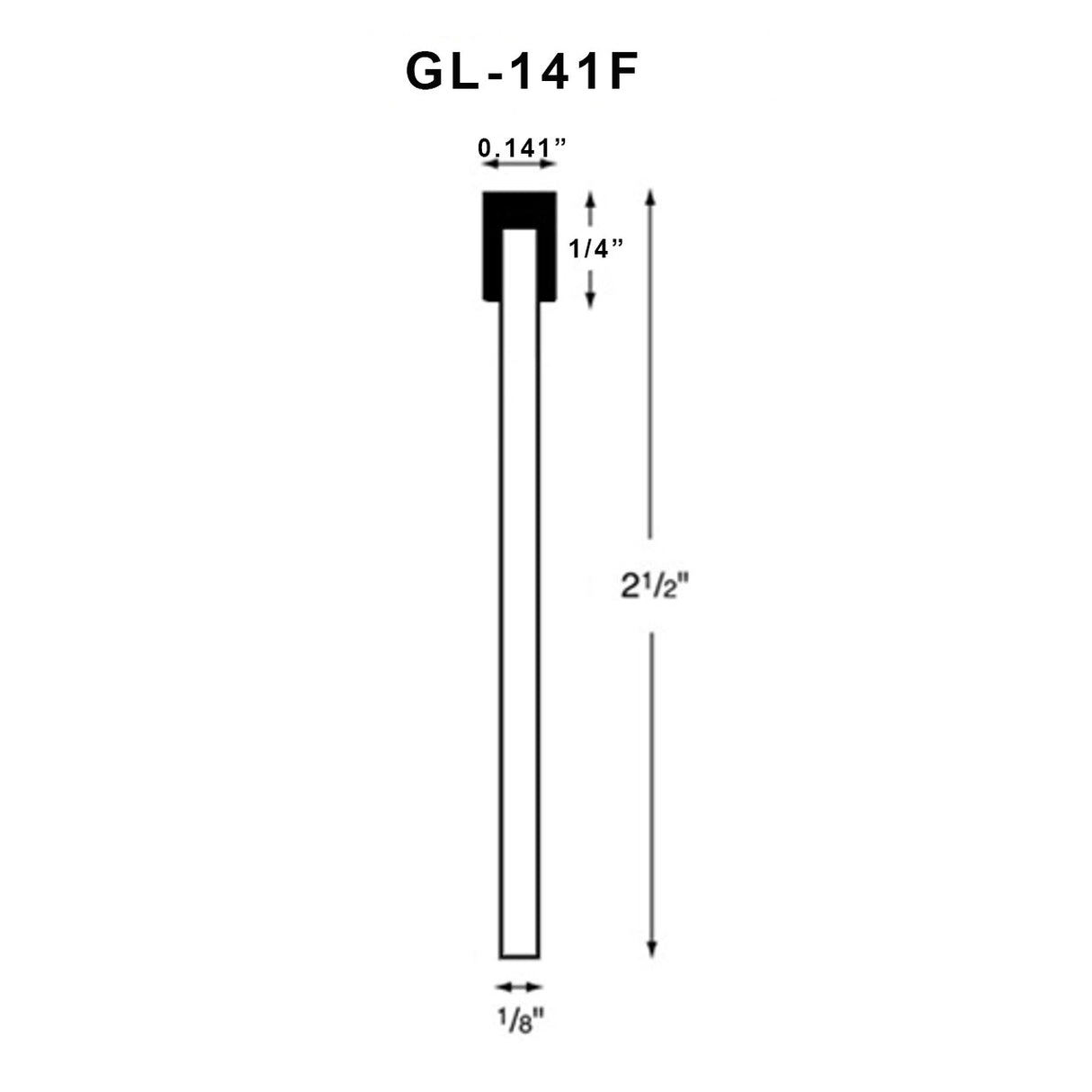

GL-141C
|
0.141"
|
1/4"
|
—
|
100/120
|
|
GL-141F
|
0.141"
|
1/4"
|
—
|
200/230
|
|

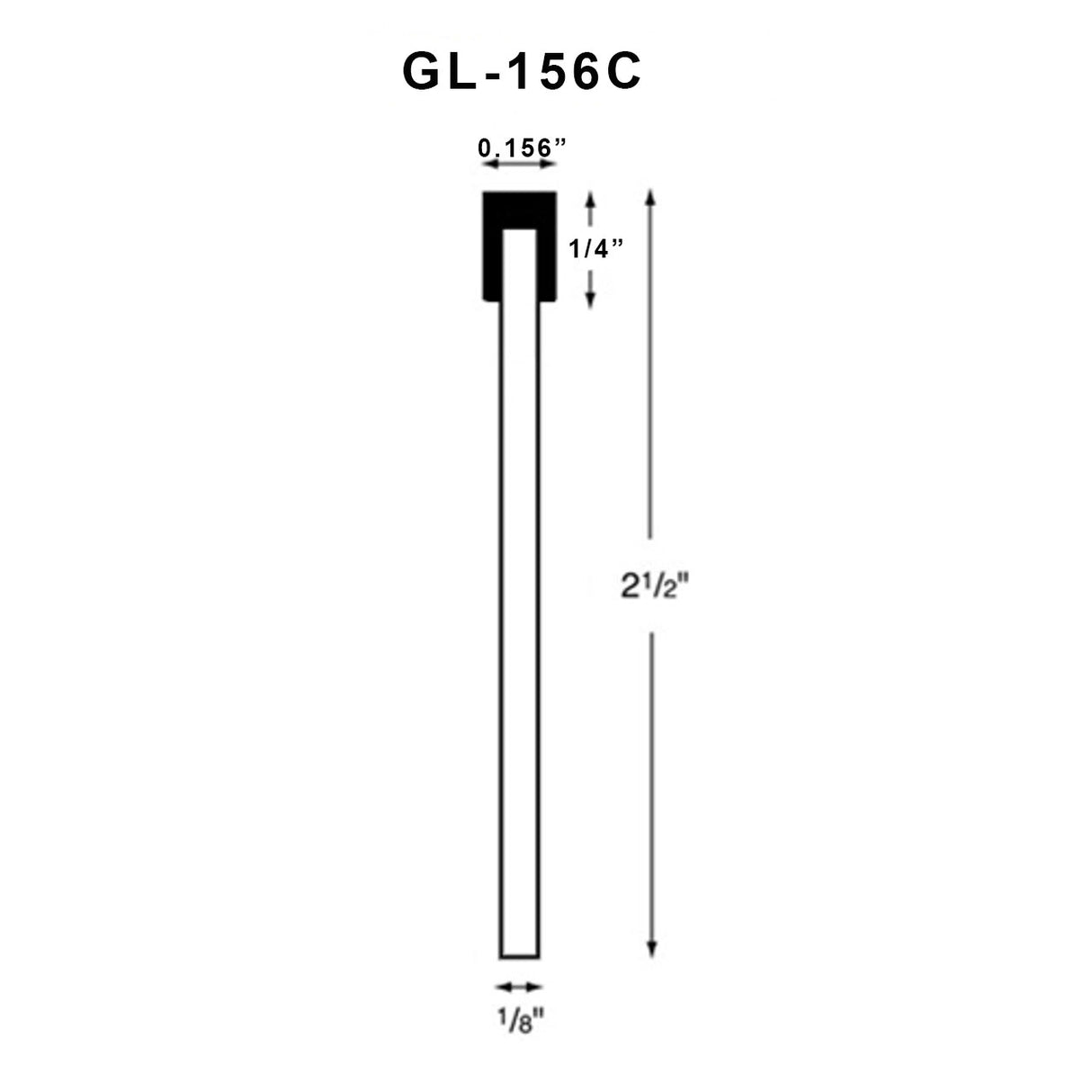

GL-156C
|
0.156"
|
1/4"
|
—
|
100/120
|
|
GL-156F
|
0.156"
|
1/4"
|
—
|
200/230
|
|
GL-188C
|
0.188"
|
1/4"
|
—
|
100/120
|
|
GL-188F
|
0.188"
|
1/4"
|
—
|
200/230
|
|
GL-218C
|
0.218"
|
1/4"
|
—
|
100/120
|
|
GL-218F
|
0.218"
|
1/4"
|
—
|
200/230
|
|

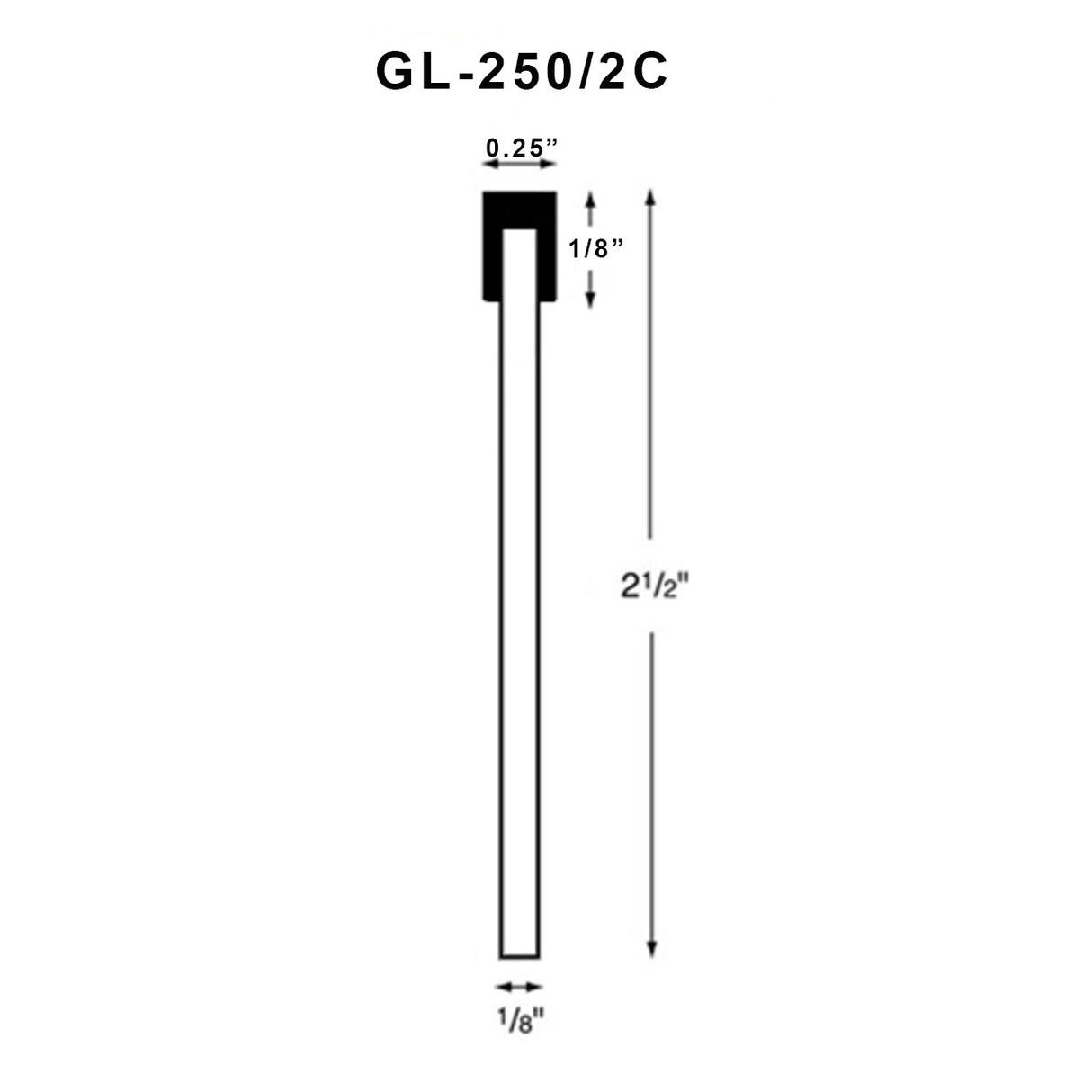

GL-250/2C
|
0.25"
|
1/8"
|
—
|
100/120
|
|
GL-250/2F
|
0.25"
|
1/8"
|
—
|
200/230
|
|
GL-250/4C
|
0.25"
|
1/4"
|
—
|
100/120
|
|
GL-250/4F
|
0.25"
|
1/4"
|
—
|
200/230
|
|
Style#
|
Diameter
(A) |
Cutting
Length (B) |
Head
Length (C) |
Grit
|
